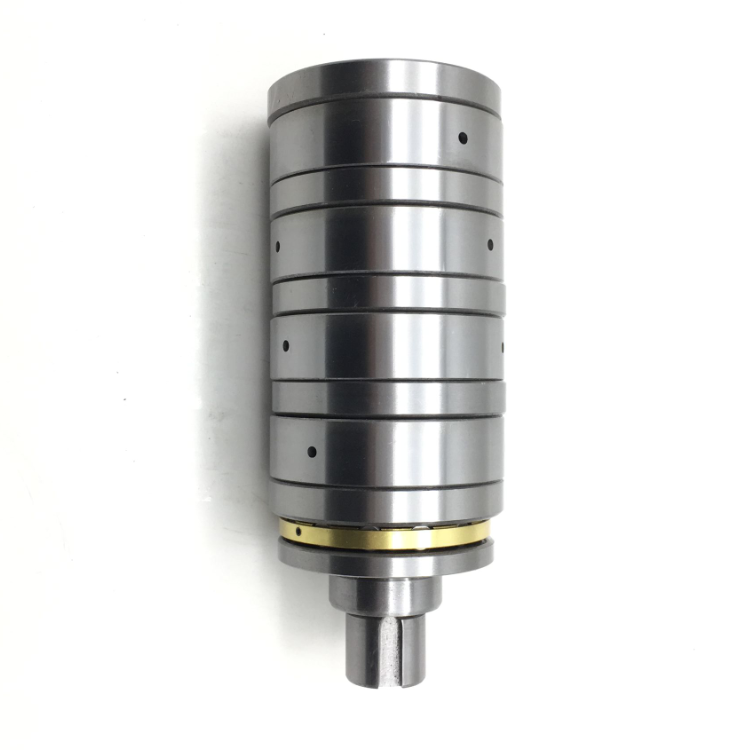

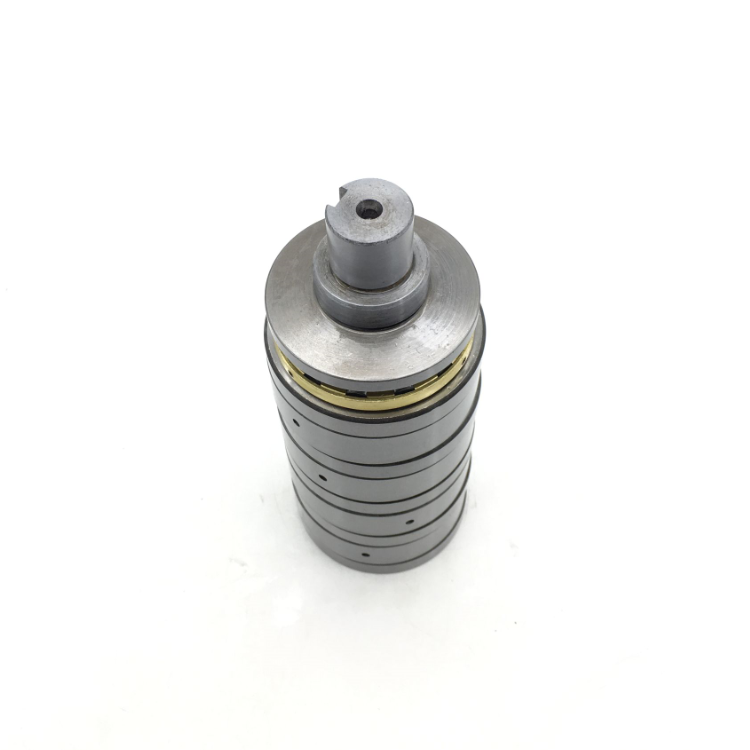

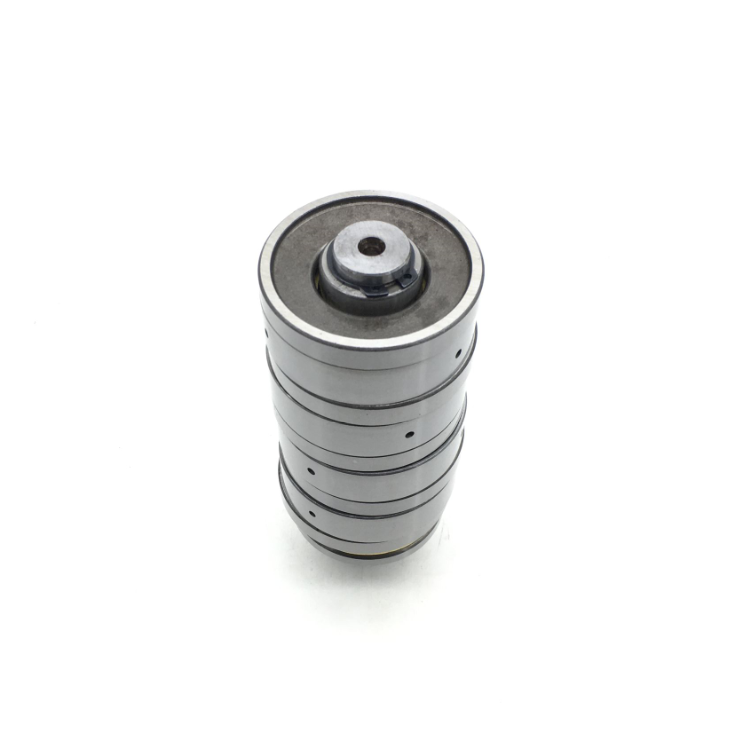

Multi-stage Tandem Thrust Roller Bearing Part 1

Multi-stage Tandem Thrust Roller Bearing Part 1

Material: chrome steel
Brand: SEIBONB
Quality: high quality
OEM Service: YES
Product description：Tandem thrust cylindrical roller bearings with small radial cross section size, compact structure, large axial load capacity, each column roller uniform load, wear resistance, small vibration noise an
INQUIRY

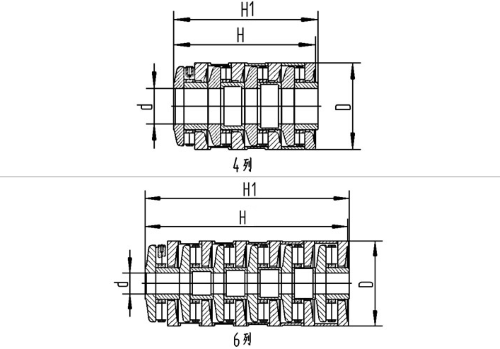

Part NO.		Dimension(mm)				Row	Rated load（KN）		Mass(Kg)
New NO.	Old NO.	d	D	H	H1		Ca	Coa
M4CT2362	T4AR2362	23	62	105	105	4	176	652	1.63
M3CT2385	T3AR2385	23	85	97	96.5	3	354	1544	3.118
M4CT2385	T4AR2385	23	85	129.5	129	4	443	2059	4.152
M5CT2385	T5AR2385	23	85	162	162	5	528	2574	5.143
M6CT2390	T6AR2390	23	90	209.8	210	6	700	3029	7.75
M3CT2468	T3AR2468	24	68	70	70	3	176	772	1.4
M5CT2468	T5AR2468	24	68	118	119	5	262	1287	2.32
M6CT2552	T6AR2552	25	52	124	124	6	163	669	1.36
M8CT2552	T8AR2552	25	52	165	165	8	204	892	1.68
M5CT2577	T5AR2577	25	77	134	134	5	337	1671	3.48
M4CT2598	T4AR2598	25	98	149.5	150	4	547	2420	8.3
M6CT25105	T6AR25105	25	105	234	234	6	893	4356	11.9
M7CT25105	T7AR25105	25	105	273	273	7	1008	5082	13.7
M3CT2866	T3AR2866	28	66	82	81.5	3	203	713	1.054
M4CT2866	T4AR2866	28	66	107.5	107	4	254	950	1.74
M6CT2872	T6AR2872	28	72	150	150	6	383	1774	3.2
M5CT2876	T5AR2876	28	76	135	133	5	428	1664	3.199
M8CT2890	T8AR2890	28	90	281	281	8	755	3379	8.82
M3CT2990	T3AR2990	29	90	98	98	3	349	1544	3.48
M4CT3068	T4AR3068	30	68	100	99.5	4	251	950	1.79
M4CT3073	T4AR3073	30	73	120	122	4	193	722	2.48
M4CT3073E	T4AR3073E	30	73	122	120	4	248	950	2.255
M5CT3073	T5AR3073	30	73	151	153	5	295	1188	3.103
M5CT3073E	T5AR3073E	30	73	151	153	5	314	1287	2.88
M6CT3073	T6AR3073	30	73	182	184	6	339	1426	3.72
M4CT3075YB	T4AR3075YB	30	75	112	104	4	248	950	2.29
M4CT30100	T4AR30100	30	100	150.5	151	4	437	2420	6.58
