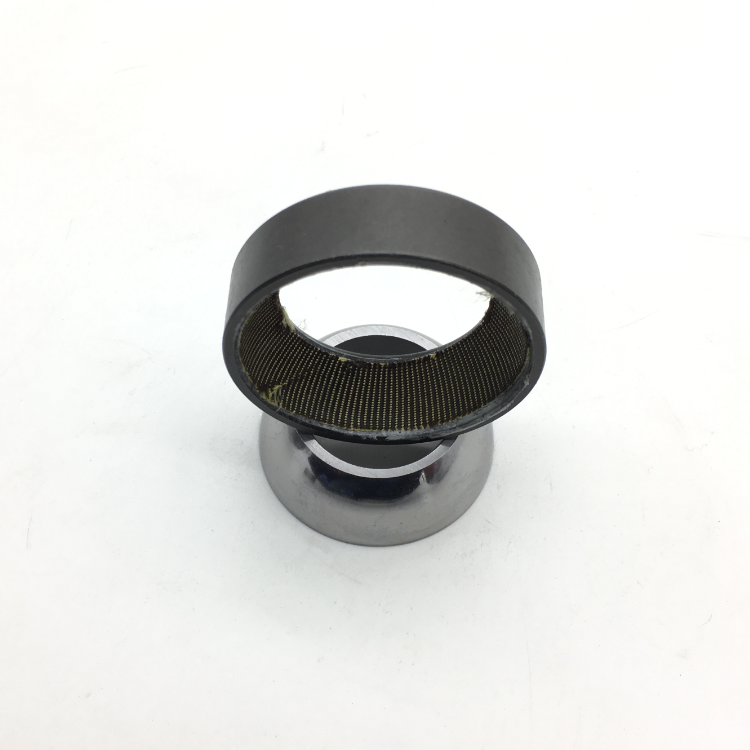

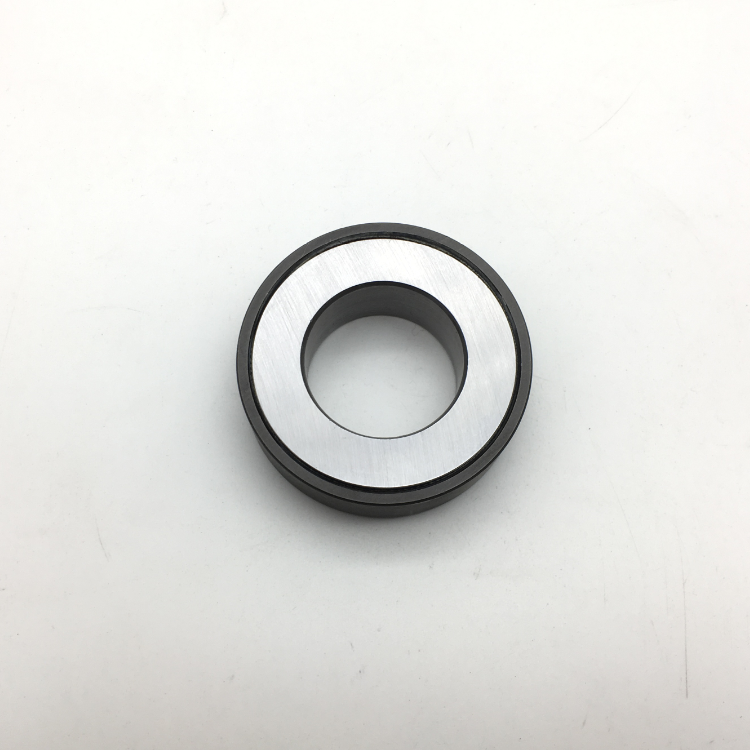

Angular Contact Spherical Plain Bearings GE SW Series

Part No.

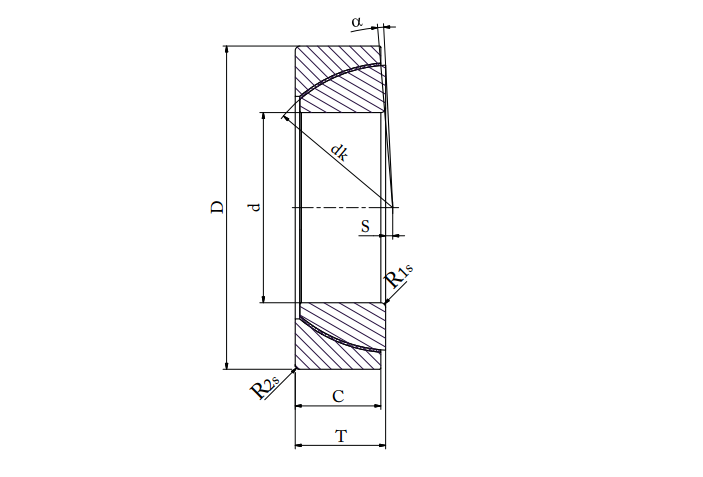

DIMENSIONS (MM)

Weight

d

D

T

C

S

kg

GE 25 SW

25

47

15

14

1

0.14

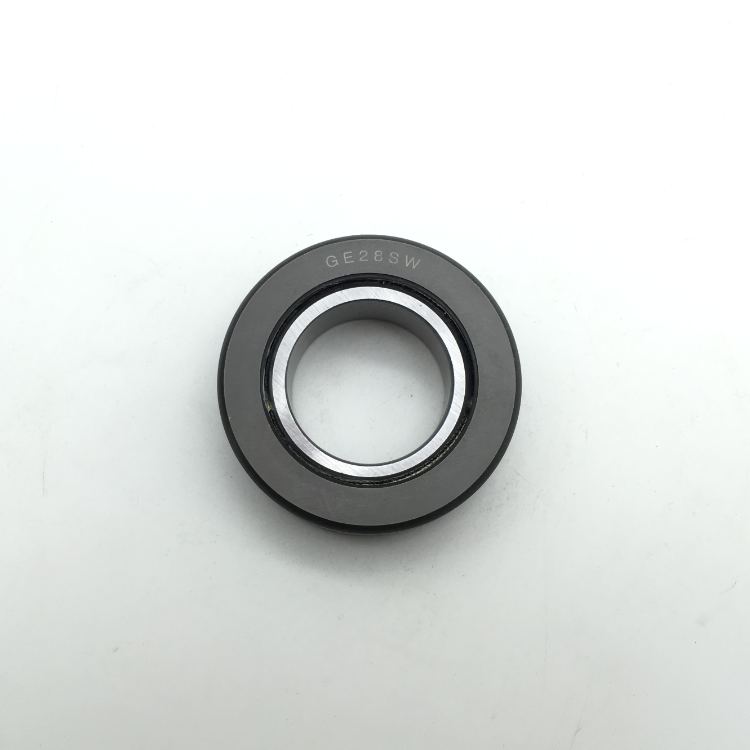

GE 28 SW

28

52

16

15

1

0.18

GE 30 SW

30

55

17

16

2

0.22

GE 32 SW

32

58

17

16

2

0.24

GE 35 SW

35

62

18

17

2

0.28

GE 40 SW

40

68

19

18

1.5

0.34

GE 45 SW

45

75

20

19

1.5

0.43

GE 50 SW

50

80

20

19

4

0.47

GE 55 SW

55

90

23

22

4

0.7

GE 60 SW

60

95

23

22

5

0.75

GE 65 SW

65

100

23

22

5

0.8

GE 70 SW

70

110

25

24

7

1

GE 75 SW

75

115

25

25

7.9

1.1

GE 80 SW

80

125

29

27

10

1.6

GE 85 SW

85

130

29

26.5

9.4

1.7

GE 90 SW

90

140

32

30

11

2.2

GE 95 SW

95

145

32

29.5

10.8

2.3

GE 100 SW

100

150

32

30

12

2.4

GE 105 SW

105

160

35

32.5

12.3

2.9

GE 110 SW

110

170

38

36

15

3.7

GE 120 SW

120

180

38

36

17

4

GE 130 SW

130

200

45

42

20

6

GE 140 SW

140

210

45

42

20

6.4

GE 150 SW

150

225

48

45

21

7.9

GE 160 SW

160

240

51

48

21

9.6

GE 170 SW

170

260

57

54

27

13

GE 180 SW

180

280

65

61

21

17.5

GE 190 SW

190

290

64

61

29

18

GE 200 SW

200

310

70

66

26

23
